Unitree A1

Robot dog

Unitree’s A1 robot is a quadruped marvel designed for researchers, developers, and students delving into robotics.Unitree A1 is a powerful and versatile robot platform that merges agility, strength, and intelligence. Its open-source design and diverse capabilities make it a compelling choice for research, education, and potentially a wide range of commercial applications.

FEATURES

12 Degrees of Freedom (DOF)

Allows for a wide range of movements

Powerful Motors and Lightweight Design

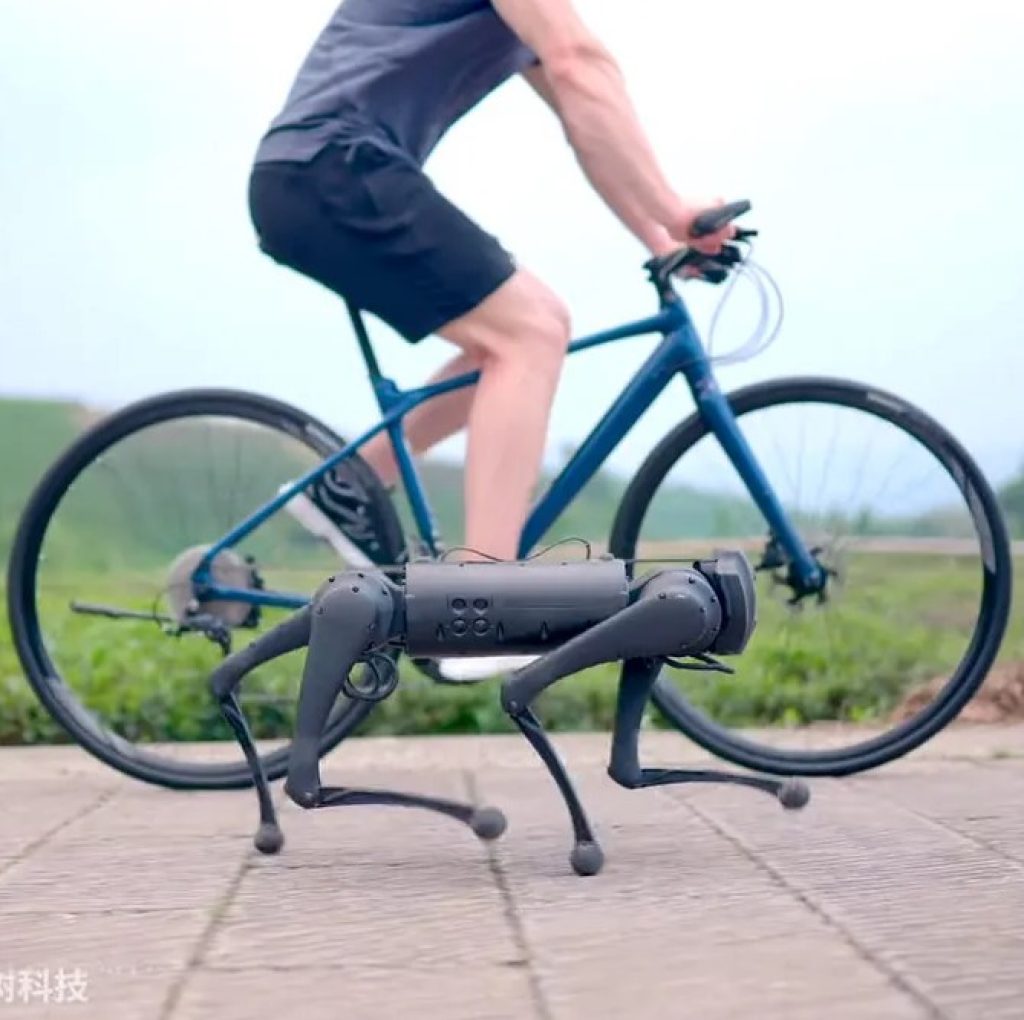

Enables speeds of 3.3 meters per second (11.88 kilometers per hour).

Quadruped Design

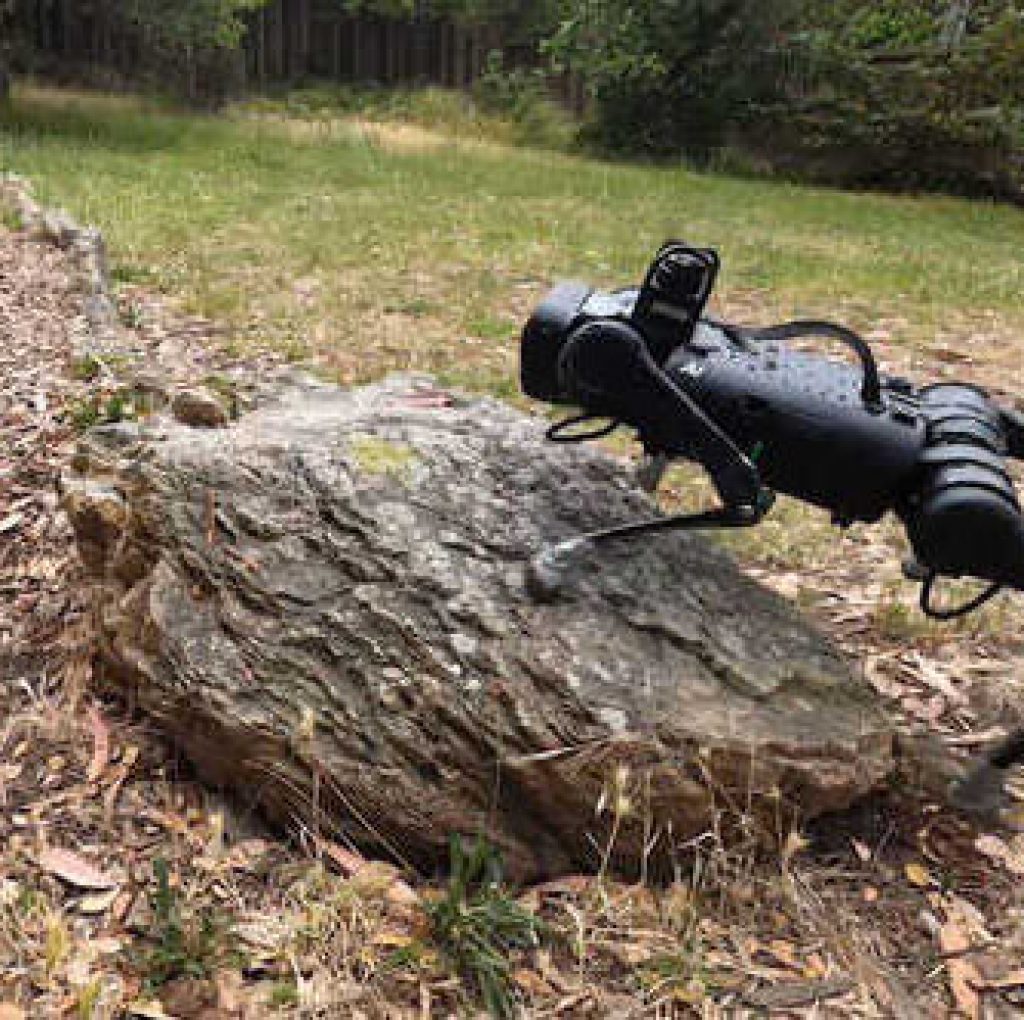

Navigates stairs, slopes, and uneven terrain.

High-Strength, Lightweight Materials

Withstands bumps and abrasions.

Industrial-Grade Bearings

Enhance reliability and extend lifespan.

High Torque Motors (33.5 Nm)

Allows for jumps and backflips.

Foot Force Sensors

Provide real-time contact information for improved balance and control.

INDUSTRIES

Oil and gas

Sending human inspectors into confined spaces or atop precarious platforms can be risky. The A1, equipped with high-resolution cameras and LiDAR, can navigate these complex environments autonomously. Its sensors can capture detailed data of equipment condition, allowing inspectors to remotely identify potential issues like leaks or corrosion.

Agriculture

Unitree's A1 robot, with its agility and sensors, has potential in agriculture. Equipped with attachments, it could even manage livestock or perform specific tasks like targeted weeding.The A1's adaptability holds promise for the future of farming.

Fire and Rescue

Search and rescue operations in disaster zones often require navigating rough terrain and overcoming obstacles. The A1's maneuverability and stability could be crucial in such situations.

Security

Equipped with cameras and obstacle avoidance, the A1 has the potential to patrol remote perimeters or even perform surveillance tasks in sensitive areas.

Entertainment

The A1's impressive athletic capabilities, as demonstrated by its backflip routines, make it a potential star for entertainment purposes. It could be used in robotics demonstrations, sporting events, or even theme parks.

Construction and mining

A1 can be used for inspection Tasks of site geometry, surveying and mapping of land, material transportation and remote Assistance.

TECH SPECS

Specification Detail

Weight	33 Kg
Payload	12 kg
Locomotion	Quadruped
Speed	Up to 11.6 km/h (7.2 mph)
Battery Life	Up to 1 hour (depending on usage)
Operating System	Likely Linux-based
Motion Control	Proprietary Software
Sensors	LiDAR, Depth Camera, IMU (Inertial Measurement Unit)
Software Features	ROS compatibility, AI module for gesture recognition (potentially), SLAM (possible)

NAVIGATION SENSORS

WEIGHT	33 Kg
PAYLOAD	12 kg

NAVIGATION SENSORS

EXTERNAL DIMENSIONS	1061 x 854 x 1224 mm
WEIGHT	80 kg (176 lbs)
MAXIMUM SPEED	80 kg (176 lbs)
GROUND CLEARANCE	80 kg (176 lbs)
OPERATING AMBIENT TEMPERATURE	80 kg (176 lbs)
INGRESS PROTECTION	80 kg (176 lbs)
OPERATING TIME	80 kg (176 lbs)

SOFTWARE

ROS (Robot Operating System): ROS is an open-source middleware framework commonly used in robotics for communication between different software components. Documentation suggests the A1 might use ROS for some functionalities, allowing developers to integrate custom applications
