Electronic Circuit Design

INTRODUCTION

Printed circuit boards (PCBs) are vital in modern electronics, evolving from hand-drawn designs to computer-aided ones. They serve as the foundation for electronic devices, influencing their performance. NewAgeRobot offers tailored PCB solutions using advanced technology and expertise, ensuring reliability and efficiency. With a focus on innovation and quality, NewAgeRobot delivers PCBs that exceed industry standards, giving customers the confidence to bring their ideas to life.

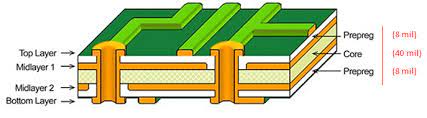

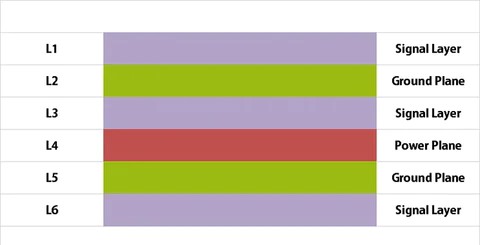

Different Layers Configurations

Single-Sided PCBs

Introducing the simplest PCBs: components neatly arranged on one side, atop sturdy fiberglass reinforced epoxy. Copper traces intricately woven on this side alone, while the other enjoys the protection of a solder mask. These boards are sleek, efficient, and ready to power your creations with reliability. Perfect for projects where simplicity meets functionality, they offer a seamless foundation for your innovations. Explore the possibilities with these PCBs, where streamlined design meets robust performance. Embrace the elegance of single-sided PCBs, your gateway to hassle-free electronics!

Double-Sided PCBs

Enter the realm of double-sided PCBs: where components find homes on both sides of the substrate. Copper traces intricately weave across both surfaces, offering a playground for intricate designs. These boards boast complexity, requiring plated through-holes or vias to link traces on both sides. They're the sophisticated choice for projects demanding versatility and robust connectivity. With double-sided PCBs, your creativity knows no bounds, as you navigate the intricacies of modern electronics. Embrace the challenge and unleash the potential of your designs with these versatile circuit boards!

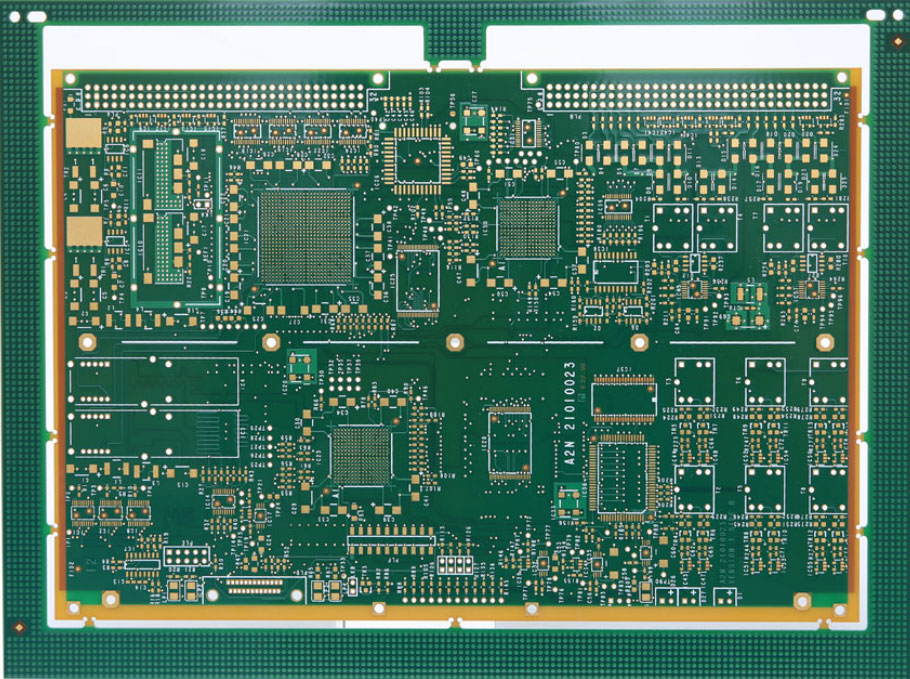

Rigid PCBs

Solid substrate materials, such as fiberglass (FR4), epoxy, or phenolic resin, are used to make rigid PCBs. These materials give the board strength and stiffness, which makes them appropriate for a variety of uses. The most prevalent kind of PCBs are rigid PCBs, which are found in a wide range of electronic gadgets. They have good mechanical and electrical qualities and are reasonably cheap to produce.Applications requiring flexibility or bendability should not use them.

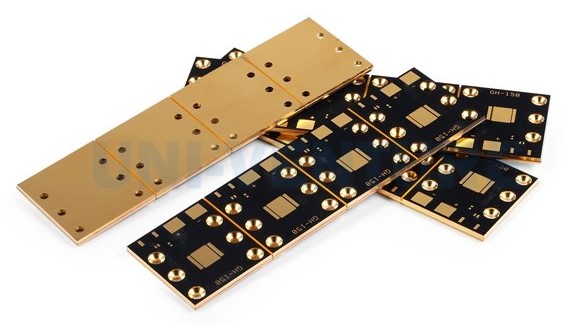

Metal Core PCBs (MCPCBs)

Metal core PCBs, made of copper or aluminum, are better at dissipating heat than standard fiberglass PCBs. They have layers of substrate material enclosing the metal core, with copper traces on top. Ideal for power electronics and LED lighting, they excel in managing heat due to their superior thermal conductivity. However, they cost more to manufacture than regular PCBs and require careful consideration for thermal management during design and troubleshooting.

Manufacturing Methods

Chemical Etching

Discover the beauty of etching, where we carefully take away copper from materials to create precise circuit designs. Our special chemicals and methods make sure your designs come out perfectly, leaving behind only the circuits you want. Watch as copper is removed, showing the patterns you planned on the material. Our etching process lets you bring your circuit ideas to life with amazing accuracy and detail. See how we turn your ideas into real circuits, step by step.

PCB MIlling

Experience the wonder of CNC magic! Our machines delicately carve out copper from coated materials following your digital blueprint. Whether it’s for a small batch or a prototype, we bring your designs to life with precision. Witness your ideas transformed into reality, one piece at a time. With our CNC technology, intricate designs come to fruition effortlessly. Let us guide you through the process, making your dreams tangible with each precise cut. Elevate your production with our seamless CNC solutions!

Electroless Plating

Dive into the world of electroless plating! Picture this: a surface covered in a sleek, metallic sheen, all without the need for wires or currents. This process works like magic, chemically coating surfaces with a thin layer of metal. Imagine transforming non-conductive materials into circuit-ready wonders for PCB manufacturing. It’s like giving your creations a shiny armor, effortlessly and precisely. Join the league of innovators harnessing this technique for flawless finishes. Let your imagination run wild as you explore the endless possibilities of electroless plating!

Solder Mask Deposition

Imagine giving your PCB a protective shield against the elements, preventing copper from rusting and keeping traces safe. That’s the magic of solder mask deposition! This process applies a special material, like a coat of armor, guarding your circuits and providing insulation between them. Say goodbye to worries about oxidation or short circuits—your PCB is now fortified for any challenge. Join the ranks of savvy engineers who trust solder mask deposition for reliable performance. It’s the finishing touch that ensures your circuits stay pristine and functional. Experience the peace of mind that comes with superior protection for your electronics!

Products

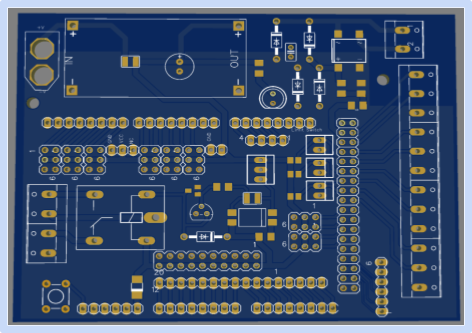

Orchestra

Imagine a unique shield for your Orchestra robots, connecting musical instruments to your Arduino. With components like trumpets, pianos, and drummers, you'll control each instrument easily. This shield acts as a conductor, harmonizing your robot orchestra with precision. Dive into the world of music and robotics, creating symphonies at your command. Experience the magic of technology and music blending seamlessly together. Let this shield be your key to unlocking endless musical possibilities!

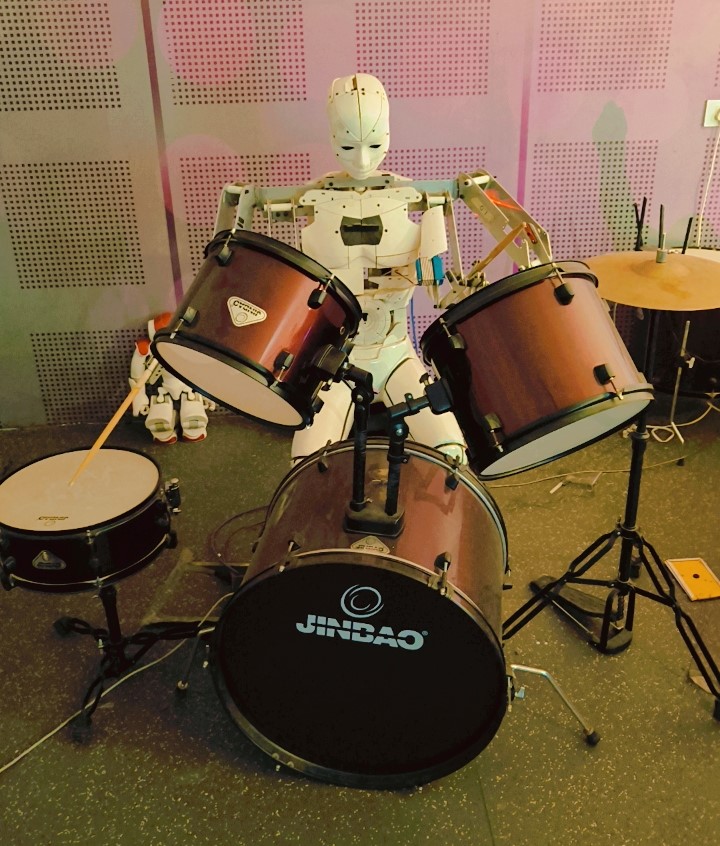

Drum Robot

Envision a cutting-edge Arduino shield crafted for orchestra robots, finely tuning every instrument's performance. This masterpiece features PWM and servo shields, flawlessly controlling actuators for trumpet, piano, and drums. With dedicated connectors, it seamlessly integrates sensors and actuators on each instrument. Precision is paramount, with PWM drivers deftly managing piano keys and drum solenoids, and servo outputs elegantly handling trumpet valves. Complete with sensor connections, such as pressure sensors for piano keystrokes and piezoelectric sensors for drum impacts. Immerse yourself in the realm of robotic symphonies, where accuracy meets artistry with this innovative shield
